High Performance GigE Vision Camera
MG-A161M/K-FL
Sony CMOS Pregius S IMX542 | 16.1 MP | Global Shutter
1. Product Overview

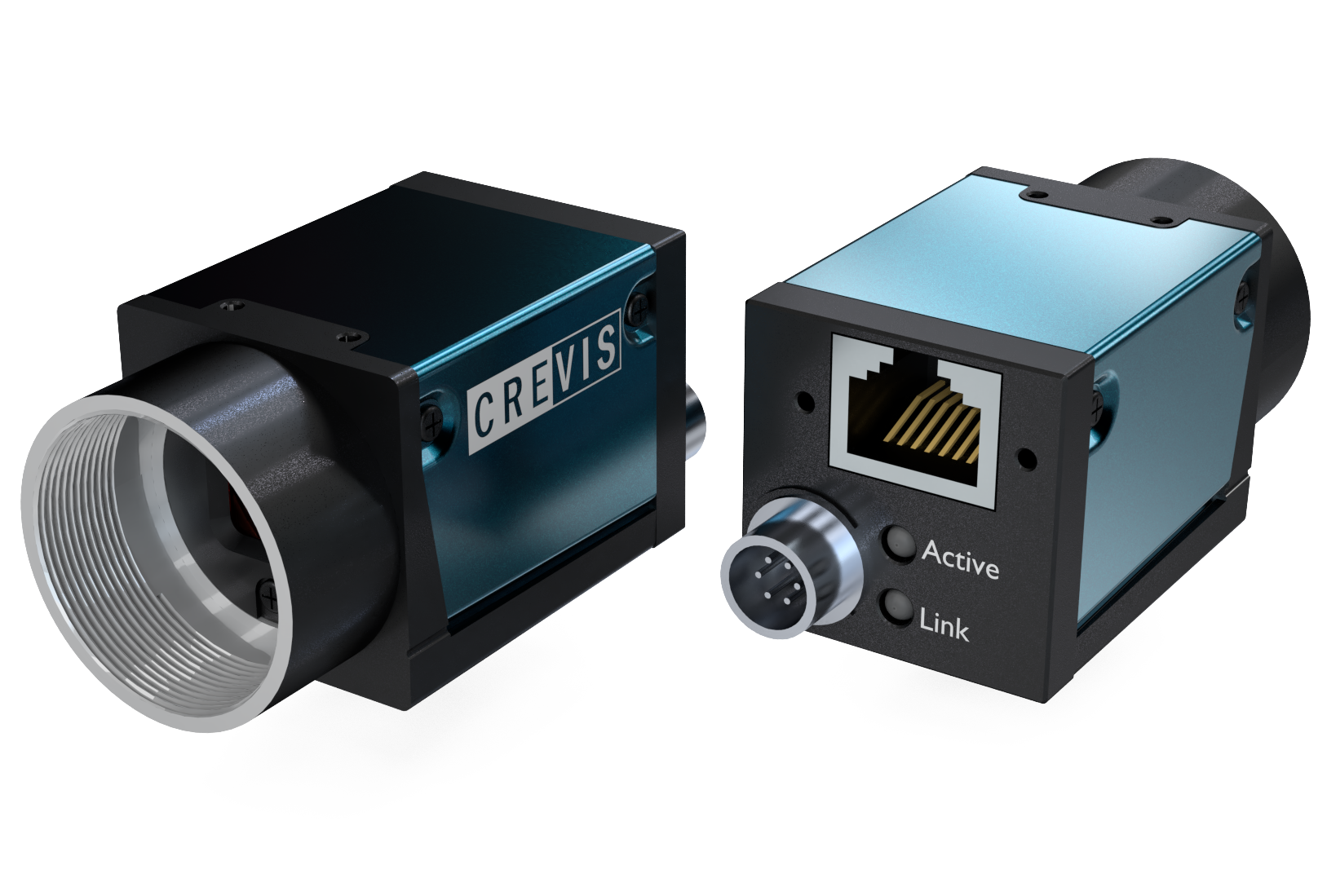

The MG-A161M/K-FL is a high-resolution industrial camera featuring the advanced Sony® Pregius S IMX542 global shutter sensor. It delivers a high-fidelity 16.1 megapixel (5328 x 3040) resolution at 13 fps via a Gigabit Ethernet interface. With its large 1.1" sensor format and 2.74 µm pixel size, it is optimized for precision-critical inspection tasks in semiconductor manufacturing, high-density PCB assembly, and large-scale metrology applications.
2. Key Features
4th Gen Sony Pregius S Sensor
Utilizes the back-illuminated IMX542 sensor to achieve high quantum efficiency and low noise within a 1.1" optical format.
GigE Vision & GenICam
Seamlessly integrates with industry-standard software libraries such as HALCON, Cognex, and CVB through full protocol compliance.
Power over Ethernet (PoE)
Simplifies system architecture by enabling data transmission and power supply through a single network cable.
Ultra-Compact Design
The space-efficient 29 x 29 x 40 mm housing allows for easy installation in restricted industrial environments without compromising performance.
3. Mechanical Dimensions

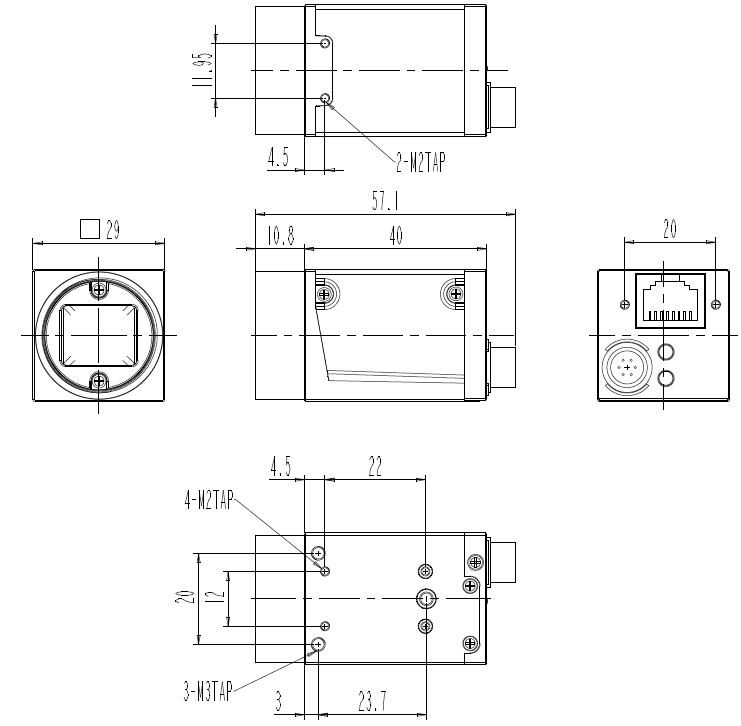

Figure 1. Mechanical Outline (Unit: 29 x 29 x 40 mm)
4. Interface & Pin Map
4.1 Back Panel Layout

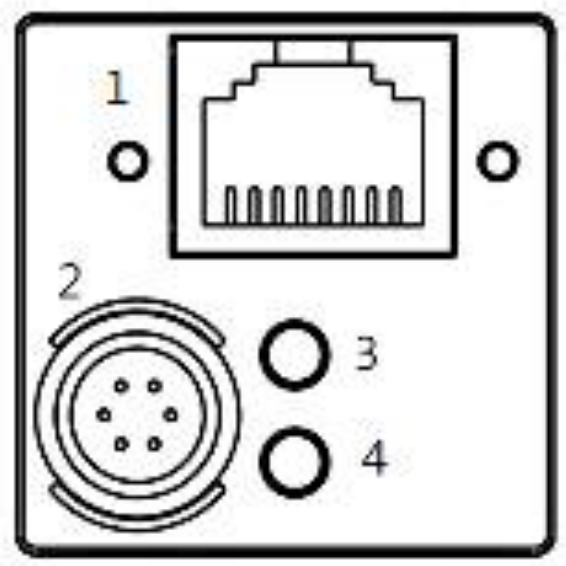

Camera Back Panel
| NO. | Name | Remark |
|---|---|---|
| 1 | Gigabit Ethernet Connector | RJ45 with PoE |
| 2 | Power & External I/O | 6-Pin Circular Connector |
| 3, 4 | Status LED Indicators | Link/Active Status |
4.2 6-Pin Circular Connector Pin Assignment

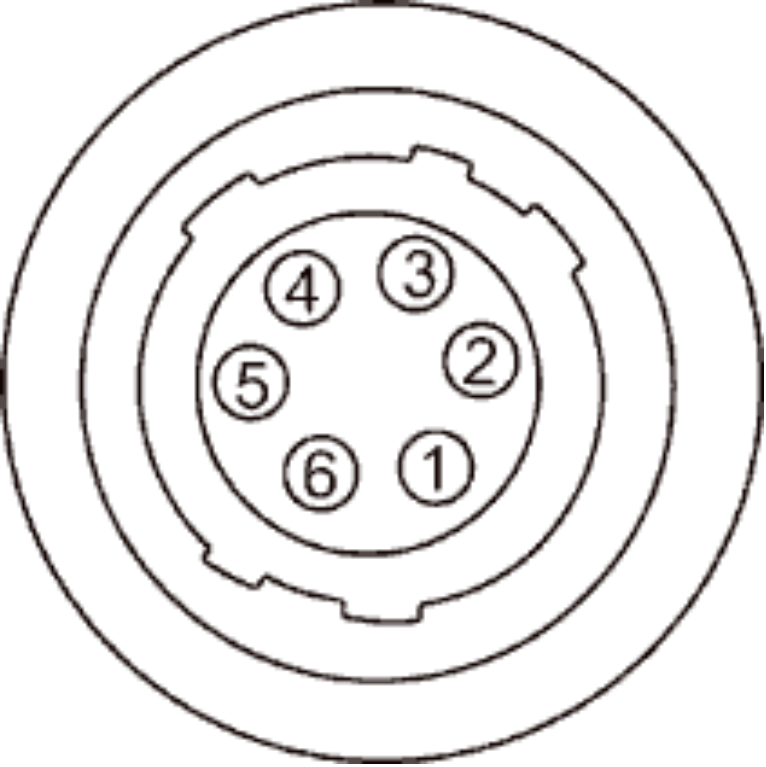

6-Pin Connector
| No. | Name | I/O | Description |
|---|---|---|---|
| 1 | DC VCC | IN | +12V DC (±10%) |
| 2 | TRIGGER+ | IN | Opto-Isolated Input |
| 3 | STROBE- | OUT | Common Ground (Out) |
| 4 | STROBE+ | OUT | Opto-Isolated Output |
| 5 | TRIGGER- | IN | Common Ground (In) |
| 6 | DC GND | IN | Power Ground |
5. Specifications
5.1 General Specifications
| Parameter | MG-A161M-FL (Mono) | MG-A161K-FL (Color) |
|---|---|---|
| Sensor Model | Sony CMOS Pregius S IMX542 | |
| Sensor Size / Shutter | 1.1" / Global Shutter | |
| Resolution | 5328 (H) x 3040 (V) (16.1 MP) | |
| Pixel Size | 2.74 µm x 2.74 µm | |
| Frame Rate (Max.) | 13 fps | |
| Scanning Method | Full / ROI / Reverse / Decimation / Binning | |
| Pixel Data Format | Mono 8/10/12 | Bayer RG 8/10/12 |
5.2 Electrical & Environmental
| Interface | Ethernet 1000 Base-T (GigE Vision Standard) | |
|---|---|---|
| Power Supply | 12VDC ± 10% or PoE | |
| Power Consumption | DC : < 3.5 W / PoE : < 4.0 W | |
| Dimension / Weight | 29 x 29 x 40 mm / Weight < 75 g | |
| Operating Temp. | 0°C ~ +50°C (at housing) | |
| Standard Compliance | CE, FCC, RoHS, WEEE, UL | |
| IP rating | IP30 | |
6. Warranty
3-Year Premium Warranty:
Crevis warrants the MG-A161M/K-FL for a period of 3 years, ensuring long-term stability and reliability for demanding factory automation tasks.
