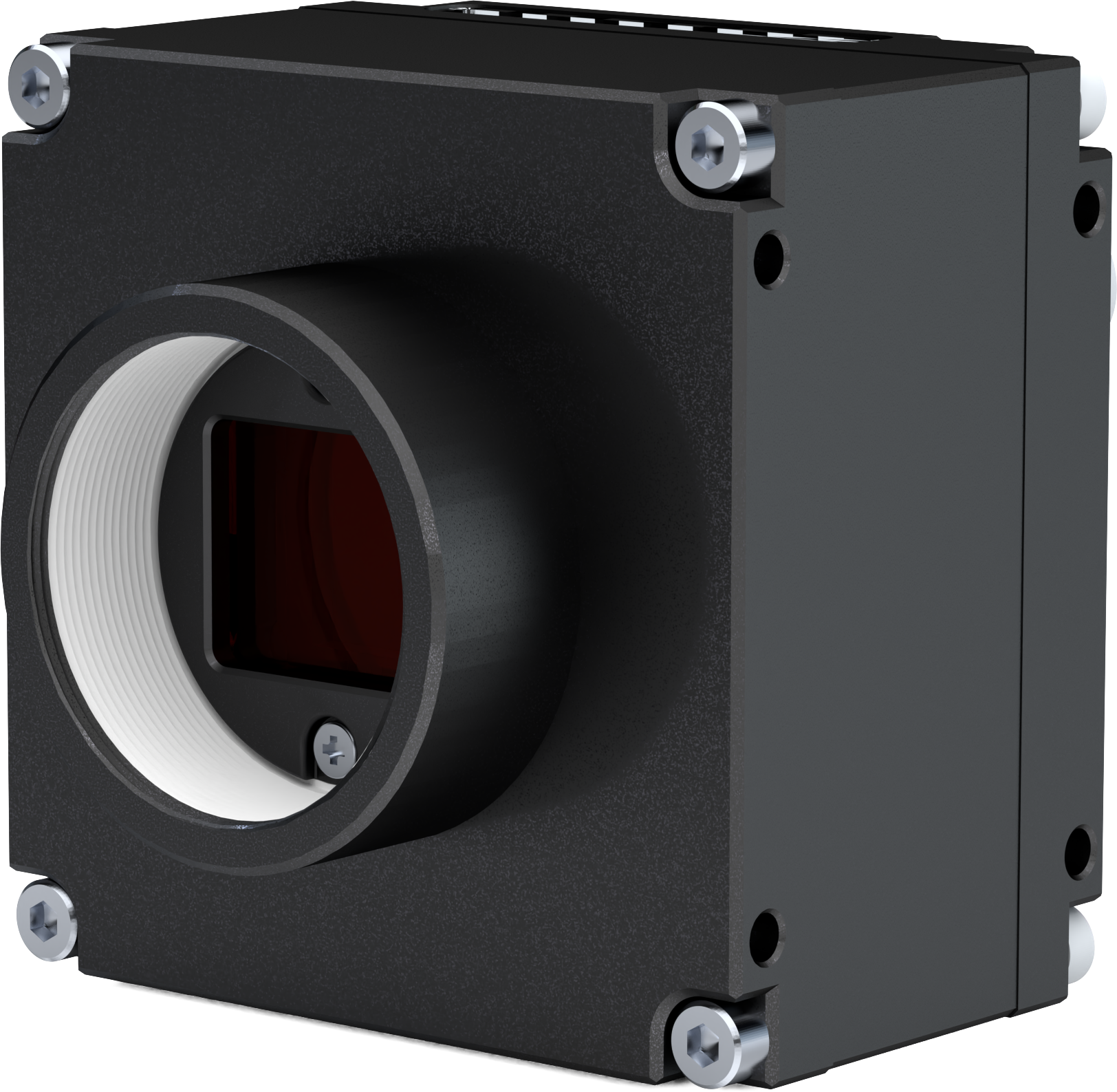

High Speed CoaXPress 2.0 Camera

HX-A241M-94

Sony CMOS Pregius S IMX530 | 24.5 MP | Global Shutter

1. Product Overview

The HX-A241M-94 is a professional-grade, ultra-high speed industrial camera designed for high-end vision systems. Featuring the **Sony® Pregius S IMX530** global shutter sensor, it delivers **24.5 megapixel** resolution (5328 x 4608) at an impressive **94 fps** through a **CoaXPress 12 (CXP-12) 2-channel** interface. With its back-illuminated pixel structure and massive bandwidth, this model is optimized for high-throughput semiconductor inspection, large-scale electronics assembly, and advanced sports analytics where every frame counts.

2. Key Features

Pregius S Sensor Performance Utilizes the 4th generation IMX530 sensor, providing high sensitivity and excellent image quality with a 2.74 µm pixel size in a 1.2" optical format.

High-Speed CXP-12 Interface The dual-channel CoaXPress 2.0 interface ensures rapid data transmission up to 24 Gbps with minimal jitter and latency.

Global Shutter Accuracy Eliminates motion artifacts, allowing for precise distortion-free imaging of fast-moving objects on automated production lines.

Industrial Ruggedness Encased in a robust housing designed for superior thermal dissipation and high stability in challenging industrial environments.

3. Mechanical Dimensions

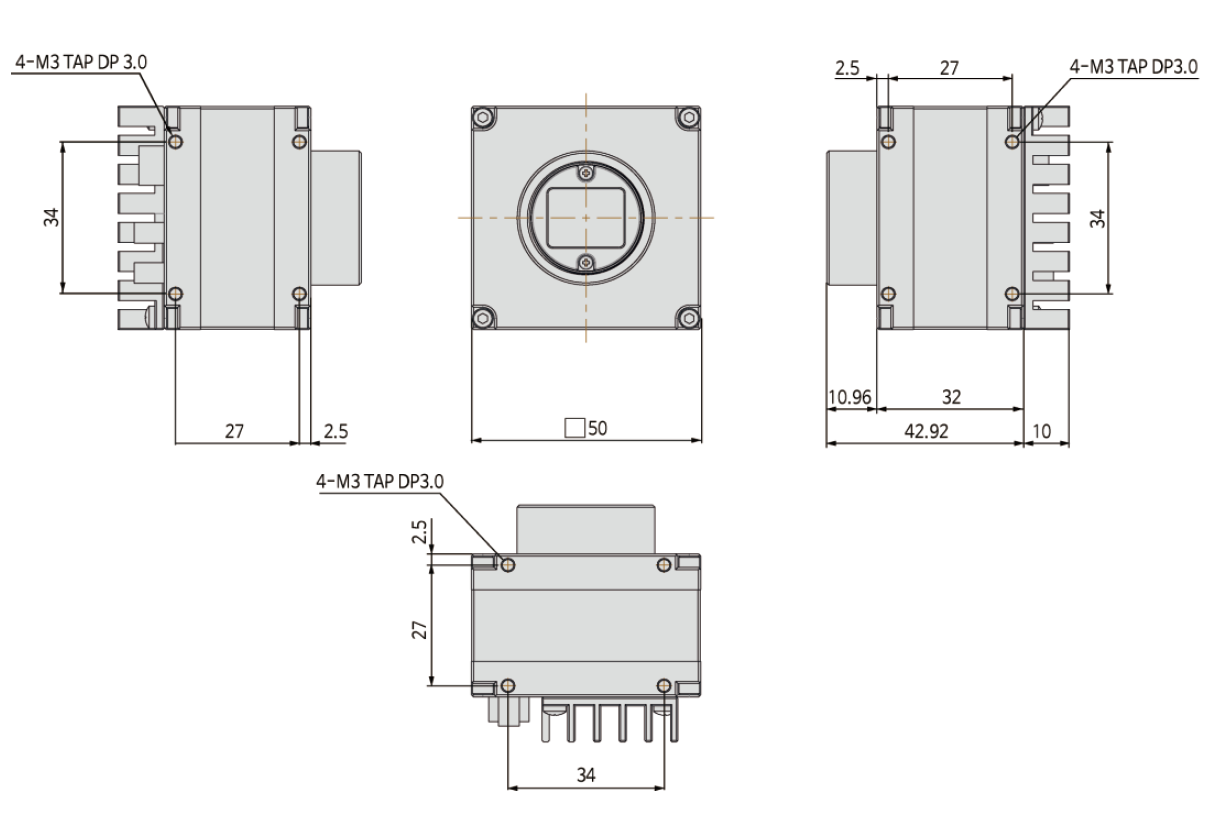

Figure 1. Mechanical Outline (Unit: 50 x 50 x 34 mm excluding mount)

4. Interface & Pin Map

4.1 Back Panel Layout

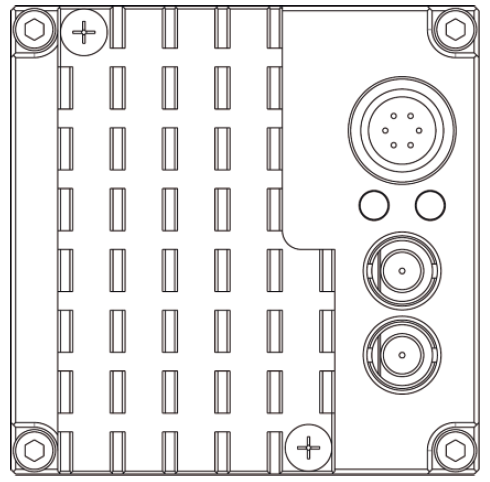

Camera Back Panel

NO.	Name	Remark
1	CoaXPress Connector (Link 1, 2)	Micro-BNC (HD-BNC) with PoCXP
2	Power & External I/O Connector	6-Pin Circular
3, 4	Status LED Indicators	CXP Link/Status display

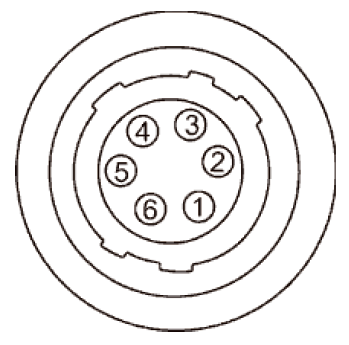

4.2 6-Pin Circular Connector Pin Assignment

6-Pin Connector

No.	Name	I/O	Description
1	DC VCC	IN	+12V ~ +24V DC Input
2	TRIGGER+	IN	Opto-Isolated Input
3	STROBE-	OUT	Common Ground (Out)
4	STROBE+	OUT	Opto-Isolated Output
5	TRIGGER-	IN	Common Ground (In)
6	DC GND	IN	Power Ground

5. LED Status Indicators

LED Position	Color / Behavior	Status Description
Left LED (Link)	Solid Red	Link disconnected or hardware error detected.
Left LED (Link)	Solid Green	CXP link established successfully.
Right LED (Status)	Off	Initialization complete / Waiting for Acquisition.
	Solid Green	Waiting for Trigger input.
	Flashing Green	Image data transferring.

6. Specifications

6.1 Performance Specifications

Sensor Model	Sony CMOS Pregius S IMX530
Resolution	5328 (H) x 4608 (V) (24.5 Megapixel)
Pixel Size / Format	2.74 µm x 2.74 µm / 1.2"
Frame Rate (Max.)	94 fps
Exposure Time	1 µs ~ 1 sec
Gain Control	Digital: x1 ~ x4
Pixel Data Format	Mono 8 / 10 / 12
Data Interface	CoaXPress 12 2-channel

6.2 Electrical & Environmental

Power Requirements	PoCXP or External DC 12V ~ 24V
Shutter Type	Global Shutter
Operating Temp.	0°C ~ +40°C (at housing)
Standard Compliance	CE, FCC, RoHS, WEEE
IP rating	IP30

7. Warranty

3-Year Premium Warranty: Crevis warrants the HX-A241M-94 for long-term industrial reliability. Specifications are subject to change without notice for quality improvement.
